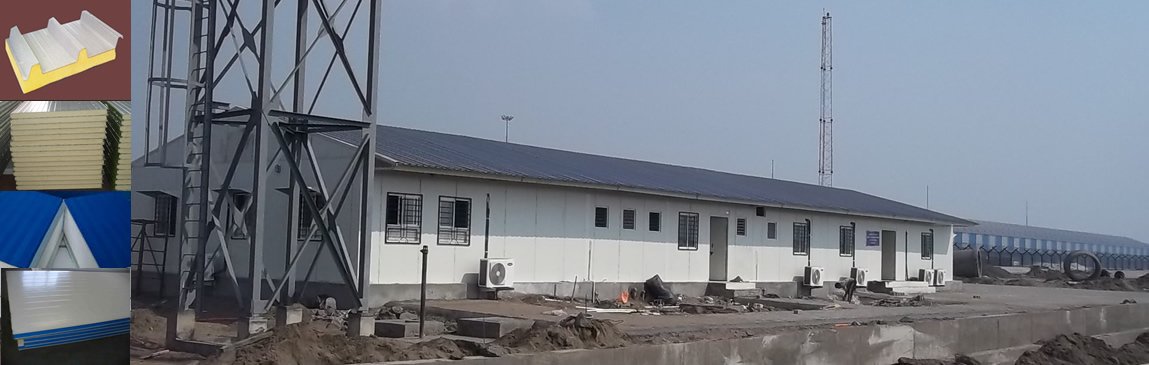

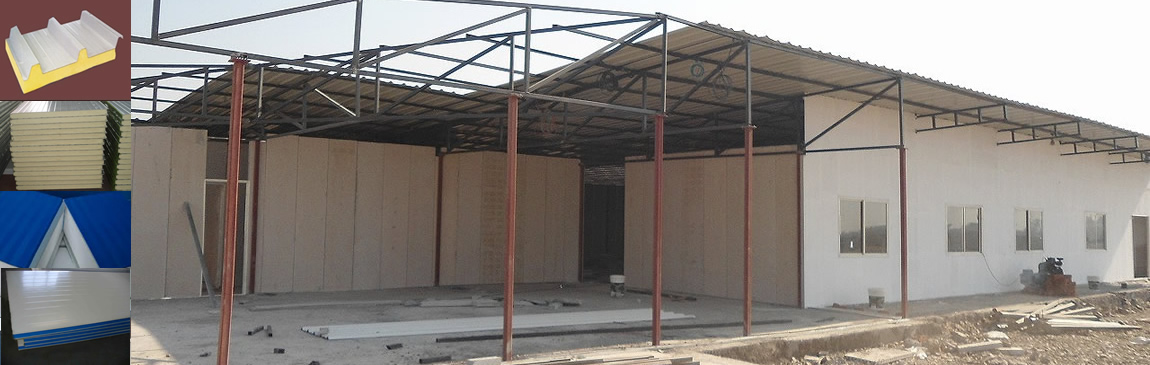

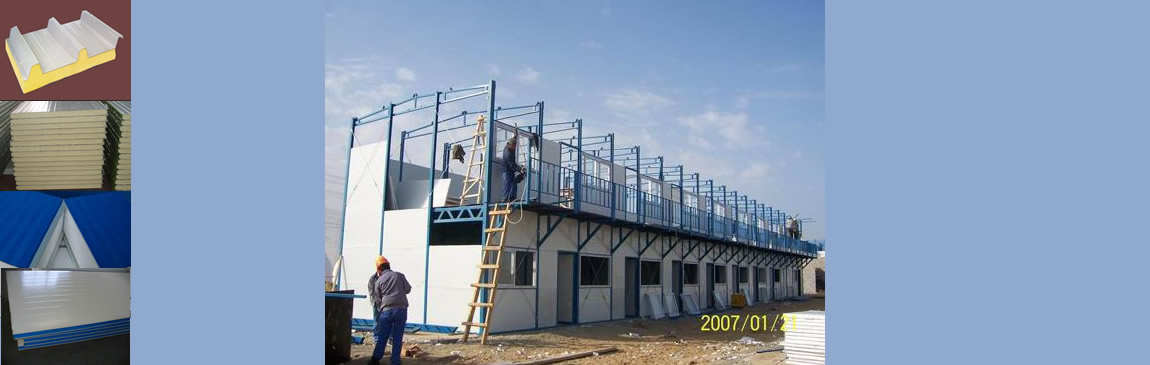

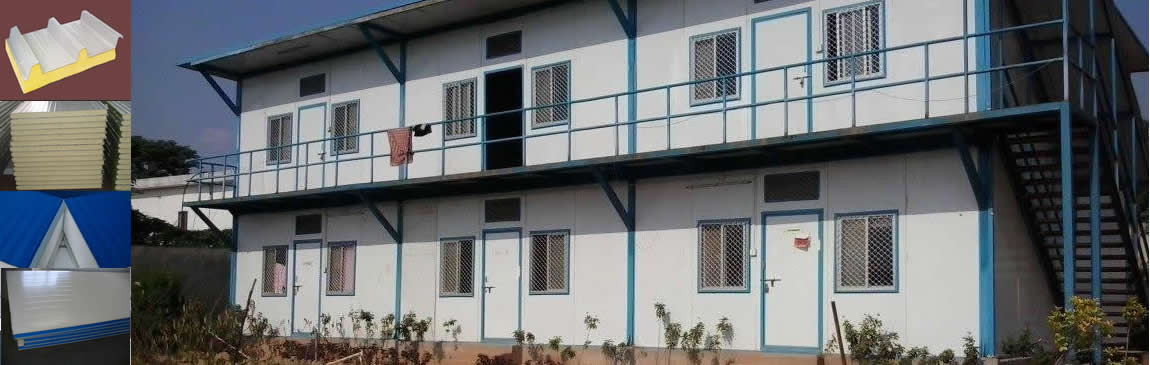

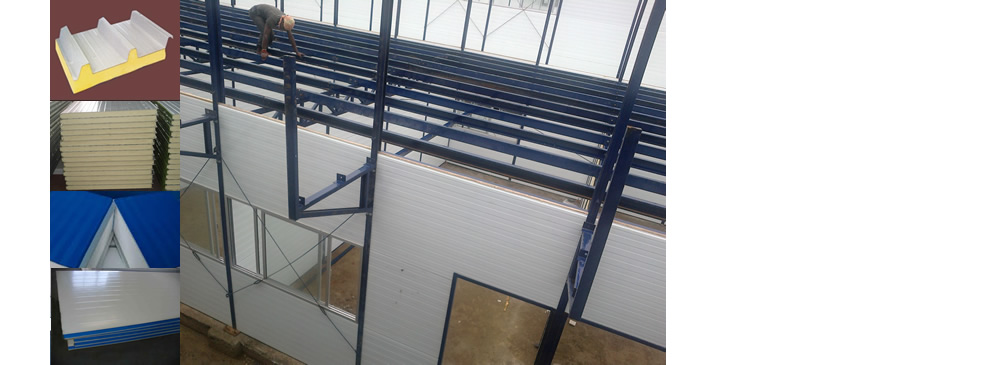

Prefabricated G+1 Structure

We are engaged in manufacturing single and double story prefabricated structures, shelters, containers and others. Our technical proficiency enables us to provide complete design, engineering and timely delivery. Our core business philosophy is to provide "VALUE FOR MONEY" to our customers.

ISO 9001-2008 certified set-up with state of the art plant and machinery resulting in quality products.

Our ethical business approach has helped us to command respect and appreciation from every corner of the industry.

PROPERTIES OF EPS AND PUF PANELS

Physical Properties

Average Measured Value

Density 40 ± 2kg/m²
Comprehensive Strength at 10% deformation 2.0 – 2.6 kg/cm²
Adhesion strength (Foam to Steel) 2.9kg / cm²
Dimensional variation (48) 2%
Closed Cell Content 90-95%
Temperature Range -50 ºC to 110 ºC
Thermal Conductivity 0.019 – 0.22 W / mºC
Fire Resistance 0.30
Air flow (CFM) 10
Compressive Strength -
Water Absorption After 24 Hrs. Self Extinguishing
Flexural Strength 10



BRIEF ABOUT CONSTRUCTIONS MATERIAL
  1. EPS PANELS

The strong and lightweight wall and roof panels are made using molded foam and overlapping of PPGI skin, which efficiently absorbs shock, resists moisture and is highly cost effective. This can be easily molded to adopt the exact shape of the shelter.

SALIENT FEATURES OF EPS PANELAS
  • Light weight
  • Quick and easy to dismantle
  • Strong
  • Shock absorbent
  • Better Thermal efficiency.
  • Cost Effective.
PUF PANELS

These panels having PPGI skin both side and core is made out of PUF. Panels are jointed with CAMLOCK and also additionally joint with tongue and groove configuration and thermal efficiency of panel does not deteriorate over a period of time by making it long lasting insulation solution.

SALIENT FEATURES OF PUF PANELS
  • It gives aesthetic appearance.
  • Reduces operational cost
  • High thermal efficiency ensures low heat transfer means low refrigeration load.
  • Quick and easy to dismantle
  • Sandwiched panels have significant mechanical strength.
  • Shock absorbent.

Standard ISO Specifications

  • Guidelines for marine containers

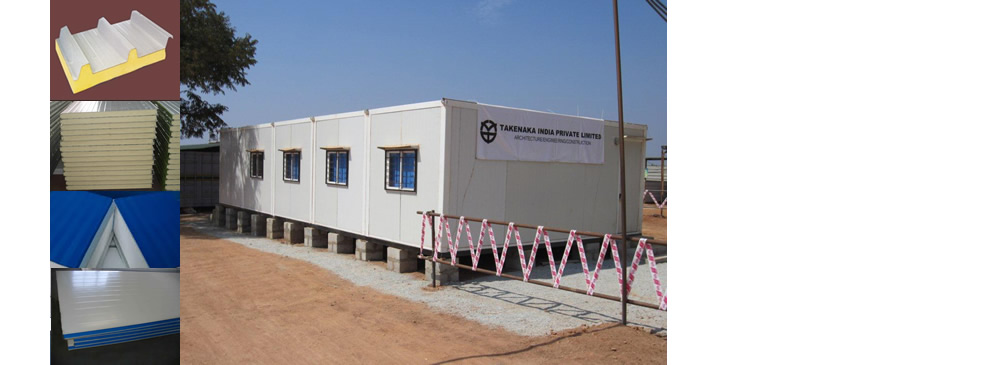

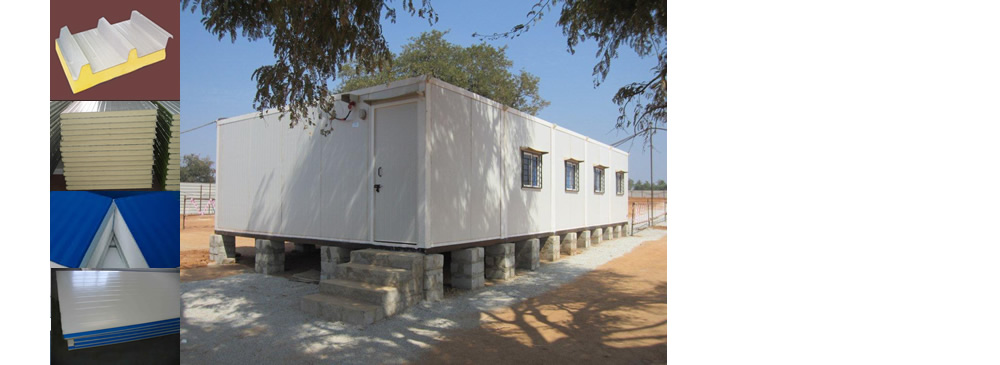

    Sunbeam containerized cabins are made as per broad ISO guidelines for marine containers, as a result of which; these structures are highly stable, rugged and intrinsically strong.
  • Unfailing strength

    These cabins have material thicknesses and profiles similar to those of ISO marine containers to ensure unfailing strength.
  • Stackable

    Their construction is such that if desired, they can be stacked one above the other vertically, thereby saving precious ground space.
  • Well insulated

    All cabins have main doors lined with suitable special gaskets and hydraulic door closers to ensure that the cold (A/C) does not escape out of the room and dust does not ingress in the rooms easily.
  • Bulk Head light

    Bulk head light fitting near the door is an additional convenience during the nights.
  • Shifting convenience

    Additionally, an extra skid beam assembly is provided as an optional feature which imparts considerable rigidity to the whole container, especially for containers which are likely to be shifted frequently.

Economy Range Specifications

  • These are highly cost effective solutions developed specially for those applications where the cabins are so be sited in low rain zone, for a relatively shorter period is required, keeping in mind.

    Detailed specifications can be made available on request.
